What is a PCIe 4.0 x16 riser cable and why would I need one for GPU mining?

A PCIe 4.0 x16 riser cable is a flexible extension that allows you to mount a GPU vertically or at a distance from the motherboard PCIe slot while maintaining the full x16 bandwidth of PCIe 4.0. In mining rigs this is useful for open-frame chassis where GPUs need to be repositioned for better airflow or when running a single high-value GPU that benefits from vertical mounting for thermal performance. Unlike x1 to x16 powered risers used in multi-GPU mining rigs, this cable passes through the full x16 lanes with no bandwidth reduction making it ideal for single-GPU setups or workstation builds that also mine.

Is this riser cable compatible with my GPU and motherboard for mining in Australia?

The PCIe 4.0 x16 riser cable is backwards compatible with PCIe 3.0 motherboards and GPUs. It works with any standard x16 GPU including AMD RX 5000, 6000, 7000, and 9000 series as well as Nvidia RTX 2000, 3000, 4000, and 5000 series cards. Confirm your motherboard has a physical x16 slot and that your case or open-frame chassis has clearance for the cable routing. At 20cm length it suits compact builds and vertical GPU mounts but may be too short for some open-frame mining rigs where a longer cable or powered riser would be more appropriate.

Does using a riser cable reduce mining hashrate or cause stability issues?

A quality PCIe 4.0 x16 riser cable introduces no measurable hashrate loss or stability issues as it simply extends the electrical connection without altering signal integrity at the rated specification. Problems typically arise from poor-quality cables with insufficient shielding or incorrect impedance matching. This cable uses gold-plated connectors and flexible TPE shielding designed for sustained operation. If you experience instability try setting your BIOS PCIe slot to Gen 3 mode as some motherboard and GPU combinations are sensitive to Gen 4 signal integrity over extension cables.

How does this x16 riser differ from a 009S powered riser used in multi-GPU mining rigs?

A powered riser like the 009S converts a PCIe x1 slot to x16 physical with external power delivery enabling you to run 6 to 12 GPUs from a single mining motherboard. It operates at x1 bandwidth which is sufficient for mining but not for gaming or AI workloads. This x16 riser cable maintains the full 16-lane connection with no external power needed and is designed for single-GPU vertical mounting or repositioning. Use the 009S for multi-GPU mining rigs and this x16 cable for single-GPU builds or workstations that also mine.

Does MinerHub ship PCIe riser cables across Australia with warranty?

Yes. MinerHub ships the PCIe 4.0 x16 riser cable Australia-wide from Perth WA with same-day dispatch on orders placed before 2:00 PM AWST. Australian Consumer Law protections apply to all accessories purchased through MinerHub. If the cable is defective on arrival or fails within the warranty period contact hello@minerhub.com.au with your order number for a replacement or refund.

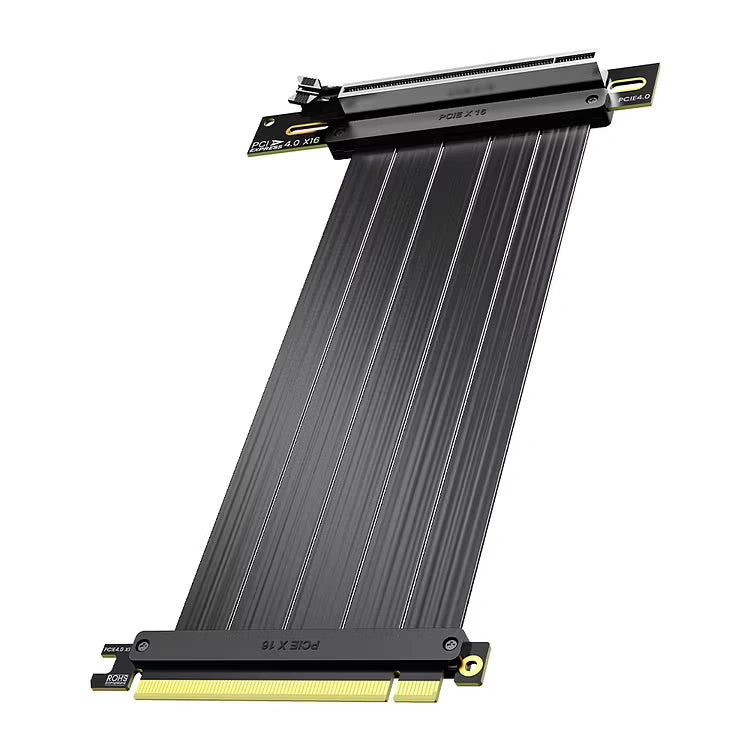

PCIe 4.0 x16 riser extension cable 20cm with flexible TPE sleeve and gold-plated connectors for RTX 4090, RTX 4080 and RX 7900 XTX vertical GPU mounting and crypto mining rigs

MinerHub GPU Riser Cable

PCIe 4.0 x16 Riser Extension Cable 20cm — GPU Vertical Mount for Graphics Card

Name: PCIe 4.0 x16 Riser Extension Cable 20cm — GPU Vertical Mount for Graphics Card
Brand: MinerHub
SKU: PCIE4-RC-20CM
Price: 44.95 AUD
Availability: InStock
Rating: 4.8 (10 reviews)

4.8 10 reviews

$44.95

Incl. GST · Free AU shipping on orders over $50

In Stock

Qty

AU Warranty
Backed

Fast AU
Shipping

Secure
Checkout

Product Details

The PCIe 4.0 x16 Riser Cable is a 20cm flexible extension cable engineered for Australian miners and PC builders running modern high-bandwidth GPUs in vertical mounts, open-frame rigs, or non-standard chassis layouts. Running at the full 16 GT/s per lane (PCIe 4.0 specification), the cable delivers up to 64 GB/s of bidirectional bandwidth — enough to feed cards like the RTX 4090, RTX 4080, RX 7900 XTX, and RX 7900 XT without throttling the link below x16 Gen4.

Construction uses EMI-shielded 30 AWG copper wires with a multi-layer foiled jacket and a flexible TPE outer sleeve, allowing tight cable routing without signal degradation. 3U gold-plated PCIe pins ensure long-term contact reliability across repeated insertion cycles — important for GPU miners who routinely swap, clean, or relocate hardware. Backward compatibility with PCIe 3.0, 2.0, and 1.0 means the same cable can be redeployed when you upgrade between generations.

For mining-rig builders, this riser is best suited to single-GPU vertical mounts or short-run reorientations where the card sits adjacent to the motherboard — not as a 1x bandwidth-limited riser. Mining workloads on modern GPUs (Kaspa, Alephium, Ethereum Classic) can saturate PCIe bandwidth during DAG loading and share submission, so a full x16 Gen4 path matters more than on older Scrypt or SHA-256 ASICs. For multi-GPU rigs that need cable management across long distances, USB-3.0 powered 1x risers (such as the 009S series) remain the correct choice.

Plug-and-play — no BIOS configuration required on most modern motherboards. The connector orientation is straight (not 90°), making this version suitable for builds where the GPU rotates in the same plane as the motherboard. Verify physical clearance between your motherboard PCIe slot and intended GPU position before purchase: 20cm is total cable length end-to-end, which works for most ATX and mATX chassis but may be insufficient for full-tower vertical mounts requiring 30cm+.

Specification	Value
PERFORMANCE
PCIe Generation	PCIe 4.0 (Gen4)
Lane Width	x16
Transfer Rate	16 GT/s per lane
Total Bandwidth	Up to 64 GB/s bidirectional
Backward Compatibility	PCIe 3.0, 2.0, 1.0
PHYSICAL
Cable Length	20 cm
Connector Orientation	Straight (180°)
Wire Gauge	30 AWG copper
Shielding	Multi-layer foiled EMI shielding
Outer Sleeve	Flexible TPE
Connector Plating	3U gold-plated PCIe pins
COMPATIBILITY
GPU Support	NVIDIA RTX 4090, RTX 4080, RTX 4070 Ti, RTX 3090, RTX 3080, RTX 3070, and earlier
AMD GPU Support	RX 7900 XTX, RX 7900 XT, RX 7800 XT, RX 6950 XT, RX 6800, and earlier
Motherboard	Any motherboard with PCIe 4.0/3.0/2.0/1.0 x16 slot
Installation	Plug-and-play — no BIOS settings required
IN THE BOX
Included	1 × PCIe 4.0 x16 riser extension cable (20cm)
