90 TH/s of Bitcoin Hashrate. 45 dB. Runs on Standard AU Power.

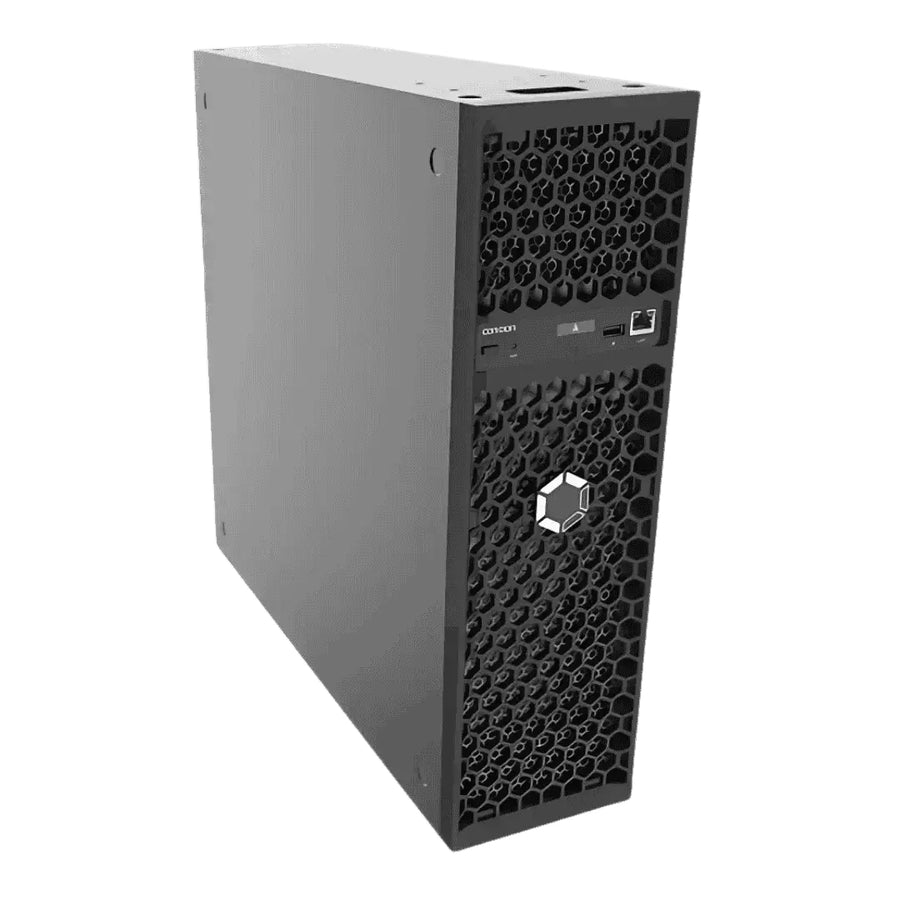

The Canaan Avalon Q is the most capable home-designed Bitcoin ASIC miner available in 2025 — delivering a genuine 90 TH/s at a near-silent 45 dB in Eco mode, with three selectable power profiles ranging from ~800W to 1674W. Built on a 4nm chip with 160 ASICs, the Avalon Q connects via Wi-Fi or Ethernet, is managed through the Avalon Family mobile app, and runs on standard Australian 240V household power — no dedicated circuit needed for Eco or Standard modes. This is Canaan's direct answer to the question: what does a Bitcoin miner designed for your home actually look like?
90
TH/s Hashrate
45 dB
Eco Mode Noise
3 Modes
Eco · Standard · Super
Runs on standard Australian household power
No dedicated circuit required for Eco or Standard mode. The Avalon Q operates on standard 110–240V household power — your Australian 240V outlet works out of the box. In Eco (~800W) and Standard (~1300W) modes, a regular 10A AU circuit is sufficient. Super mode (~1674W) is recommended on a 15A circuit. This makes the Avalon Q the most electrically accessible serious Bitcoin miner in your catalogue — no electrician required for most buyers.
Three power modes — one miner
Eco Mode
Hashrate~54 TH/s
Power draw~800W
Noise~40 dB
Maximum efficiency. Bedroom-safe. Ideal for high electricity cost periods or solar integration.
Standard Mode
Hashrate~80 TH/s
Power draw~1300W
Noise~50 dB
Everyday sweet spot. Runs on standard 10A circuit. Most AU home miners will use this as their default.
Super Mode
Hashrate90–93 TH/s
Power draw1674W
Noise~50–65 dB
Full rated performance. 15A circuit recommended. Max hashrate when electricity is cheap.
Supported coins
BTC — Bitcoin
BCH — Bitcoin Cash
BSV — Bitcoin SV
Key features in detail
Avalon Family App Control
Switch power modes, monitor hashrate and temperature, and configure pools — all from your phone. iOS and Android supported.
Wi-Fi + Ethernet Dual Connectivity
Place it anywhere in your home. Wi-Fi adapter included in the box. Ethernet port also available for wired stability.
Onboard Display Screen
Shows the miner's IP address on boot — no network scanning tools needed. Simple setup for first-time miners.
4nm ASIC Chip — 160 Chips
Cutting-edge 4nm silicon delivers efficient hashrate at lower thermal density than older generation 5nm or 7nm miners.
Solar & Spot Price Optimisation
Three modes let you ramp up in Eco when electricity is expensive and push to Super when solar is producing — intelligent home mining.
Up & Mining in Under 10 Minutes
No PC required. Download the Avalon Family App, connect to Wi-Fi, set your pool address, select a mode — done.
Why the Canaan Avalon Q?
- 90 TH/s SHA-256 — 4nm chip, 160 ASICs
- Runs on standard AU 240V household power
- Near-silent 45 dB in Eco mode
- 3 power modes — 800W to 1674W
- Wi-Fi + Ethernet — dual connectivity
- Avalon Family App — iOS + Android
- Onboard display screen — shows IP on boot
- PSU included — plug and mine immediately
- Setup in under 10 minutes, no PC needed
- 360-day Canaan warranty + MinerHub AU support
Full specifications
Technical Specifications
| Specification |
Value |
| Model |
Avalon Q |
| Manufacturer |
Canaan |
| ASIC chip |
4nm — 160 chips total |
| Algorithm |
SHA-256 |
| Max hashrate |
90 TH/s±10% variance · real-world ~93 TH/s observed in Super mode
|
| Eco mode |
~54 TH/s at ~800W~40 dB · standard 10A AU circuit
|
| Standard mode |
~80 TH/s at ~1300W~50 dB · standard 10A AU circuit
|
| Super mode |
90 TH/s at 1674W~50–65 dB · 15A circuit recommended
|
| Energy efficiency |
18.6 J/THat rated Super mode spec
|
| Noise level |
45–65 dB~40 dB in Eco · ~65 dB in Super — home-friendly across all modes
|
| Input voltage |
110–240V ACAU 240V household compatible — no dedicated circuit for Eco/Standard
|
| Cooling |
Air-cooled — 2 fans |
| Connectivity |
Ethernet RJ45 + Wi-FiWi-Fi adapter included in box
|
| App control |
Avalon Family AppiOS + Android · mode switching, pool config, live monitoring
|
| Display |
Yes — onboard IP displayshows IP address on boot for easy setup
|
| Supported coins |
BTC, BCH, BSVany SHA-256 Stratum pool · solo and pool mining supported
|
| PSU |
Included110–240V universal · AU plug adapter may be required
|
| Dimensions (L×W×H) |
455 × 130 × 440 mm |
| Net weight |
10.5 kg |
| Operating temperature |
-5°C – 35°C |
| Release date |
April 2025 |
| Canaan warranty |
360 days |
| MinerHub warranty |
AU Warranty support via MinerHub |
Bitcoin mining profitability depends on network difficulty, BTC price, electricity costs, and other market variables. MinerHub does not guarantee mining returns. All hashrate and power figures are manufacturer-stated typical values (±10% hashrate, ±5% power). Real-world mode performance (Eco ~54 TH/s, Standard ~80 TH/s, Super ~93 TH/s) sourced from independent testing. Power plug: the included PSU is 110–240V universal; an AU plug adapter may be required — confirm at time of purchase with MinerHub. For Super mode, a 15A circuit is recommended to avoid tripping standard household breakers.
