What is a PCIe riser 009S Plus and why do I need one for GPU mining?

The PCIe riser 009S Plus is a powered adapter that converts a PCIe x1 slot or USB 3.0 port on a mining motherboard into a full-size x16 slot for your GPU with external power delivery. It allows you to space GPUs apart in an open-frame mining rig for better airflow and thermal management rather than stacking them in adjacent motherboard slots. Every multi-GPU mining rig uses risers and the 009S Plus is the industry standard with 4 solid capacitors for stable power delivery, a 60cm USB 3.0 cable, and triple power input options including Molex, 6-pin, and SATA.

How many risers do I need for my GPU mining rig?

You need one riser per GPU. If you are building a 6 GPU rig you need 6 risers. For a 12 GPU rig on a board like the B250C BTC or BIOSTAR TB360-BTC PRO you need 12 risers. It is good practice to order 1 to 2 spares as risers are the most common failure point in mining rigs and having replacements on hand avoids downtime. MinerHub stocks individual units so you can order the exact quantity you need.

Which power connector should I use on the 009S Plus riser for mining?

The 6-pin PCIe power connector is the preferred and safest option as it delivers clean dedicated power from your PSU 6-pin rail. Molex is acceptable as a secondary option. Avoid using the SATA power connector for mining as SATA connectors are rated for lower sustained wattage and have been documented to melt or catch fire under continuous GPU mining loads. Always use the 6-pin connector when your PSU has available 6-pin rails.

Are PCIe risers safe for 24/7 mining in Australian conditions?

Yes when used correctly. The 009S Plus 4 solid capacitor design provides stable power delivery suitable for continuous operation. Key safety practices include using only 6-pin power connectors, ensuring USB cable connections are fully seated, maintaining adequate airflow around risers, and inspecting connections monthly for signs of heat damage or loose contacts. In hot Australian climates position your rig in a ventilated space and avoid stacking risers in enclosed areas where heat can accumulate.

Does MinerHub ship PCIe risers across Australia with warranty?

Yes. MinerHub ships the PCIe Riser 009S Plus Australia-wide from Perth WA with same-day dispatch on orders before 2:00 PM AWST. Australian Consumer Law protections apply. If a riser is defective on arrival contact hello@minerhub.com.au with your order number for a replacement. We recommend ordering a spare or two with your rig build to minimise downtime from any future riser failure.

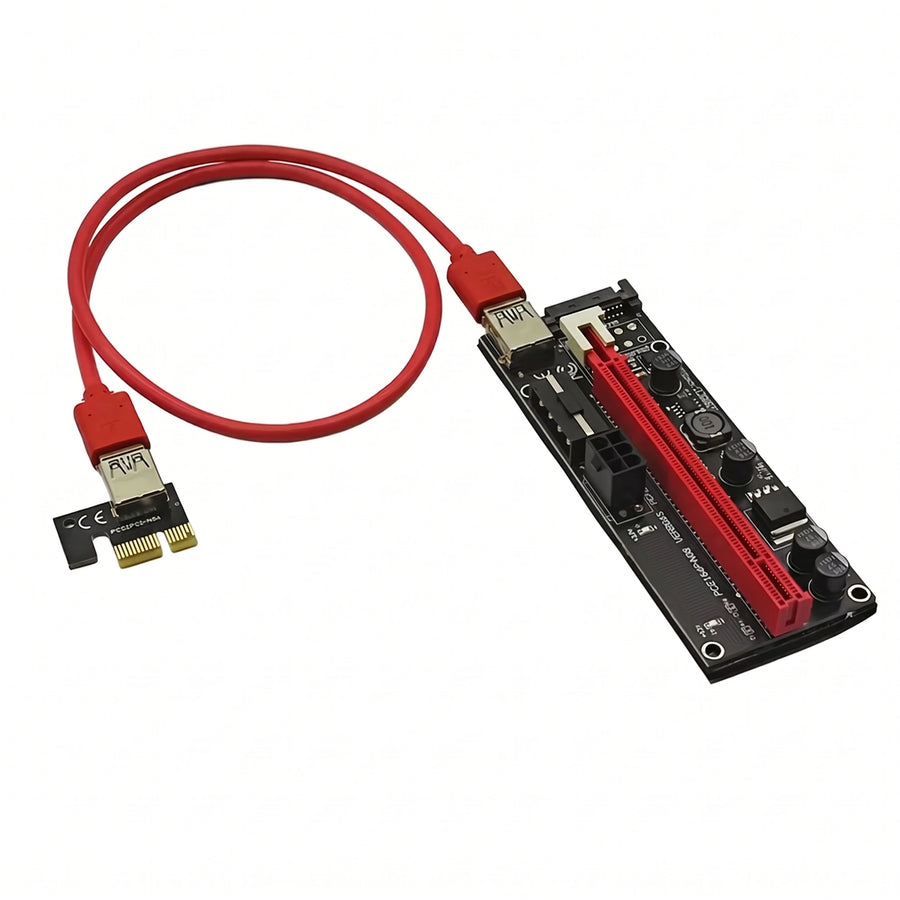

PCI-E Riser 009S Plus kit with 1x to 16x powered adapter board, 60cm USB 3.0 cable, 4 solid capacitors and Molex/6-pin/SATA power inputs for GPU crypto mining rigs

MinerHub GPU Riser

PCI-E Riser 009S Plus — 16x PCIe Riser Card with USB 3.0 Cable for GPU Mining

Name: PCI-E Riser 009S Plus — 16x PCIe Riser Card with USB 3.0 Cable for GPU Mining
Brand: MinerHub
SKU: RISER-009S-60
Price: 19.99 AUD
Availability: InStock
Rating: 4.67 (6 reviews)

4.7 6 reviews

$19.99

Incl. GST · Free AU shipping on orders over $50

In Stock

Qty

AU Warranty
Backed

Fast AU
Shipping

Secure
Checkout

Product Details

The PCI-E Riser 009S Plus is the workhorse component of GPU mining rig construction — a powered 1x-to-16x PCIe riser that lets you space GPUs out across an open-frame rig for maximum airflow while keeping each card connected to its own motherboard PCIe lane. The 009S Plus revision is the latest iteration of the well-established 009-series risers, featuring 4 solid-state capacitors, voltage regulation chips, over-current protection, and three power-input options for maximum compatibility with any PSU.

Each riser kit ships with three components: a PCIe 1x adapter card that plugs into the motherboard, a PCIe 16x powered riser board that mounts the GPU, and a 60cm USB 3.0 cable that connects the two. The USB 3.0 cable is shielded and rated for PCIe 1x signalling — it carries PCIe data, not USB protocol, despite using the USB 3.0 connector form factor for cost and durability reasons. The 1m+ signal stability of the 009S Plus comes from voltage regulation built into the powered riser board.

Power input on the riser board accepts three options — a 4-pin Molex, a 6-pin PCIe, or a 15-pin SATA — but only one should be connected at any time. Mining rig builders typically use the 6-pin PCIe input with the included 6-pin to SATA adapter cable, sourcing power directly from a dedicated PSU rail to reduce motherboard 24-pin current draw. Two LEDs on the board indicate +3.3V and +12V rail status, giving instant visual feedback during rig commissioning.

Suitable for any GPU mining rig using standard PCIe 1x or 16x slots — Bitcoin altcoin miners running Kaspa, Alephium, Ethereum Classic, or any GPU-mineable algorithm. Compatible with Intel and AMD motherboards including BIOSTAR TB360-BTC PRO 2.0, ASRock H110 Pro BTC+, and similar 8–12 GPU mining boards. For new RTX 40-series or RX 7000-series cards running modern algorithms that may saturate PCIe bandwidth, a 1x riser will throttle the link — use a PCIe 4.0 x16 riser cable instead for those cards.

Specification	Value
PERFORMANCE
Riser Type	PCIe 1x to 16x powered riser
Signal Standard	PCIe (carried over USB 3.0 physical connector)
Maximum Cable Length	60 cm (signal-stable to 3m+ with onboard voltage regulation)
Bandwidth	PCIe 1x lane (sufficient for most mining algorithms)
PHYSICAL
USB 3.0 Cable Length	60 cm
Riser Board Dimensions	Approx. 122 × 45 × 13 mm
PCIe Adapter Card	PCIe 1x (fits PCIe 1x, 4x, 8x, 16x motherboard slots)
Connector Plating	Gold-plated contacts
Capacitors	4 × solid-state capacitors
Indicators	2 × LED status (+3.3V and +12V rails)
POWER INPUT
Power Options	4-pin Molex, 6-pin PCIe, or 15-pin SATA (connect ONE only)
Recommended	6-pin PCIe input via included SATA adapter cable
Protection	Onboard voltage regulation, over-current protection, automatic anti-jam circuit
COMPATIBILITY
Motherboards	Any motherboard with PCIe 1x, 4x, 8x, or 16x slot
GPUs	All AMD and NVIDIA graphics cards with PCIe interface
Operating Systems	Windows, Linux (HiveOS, RaveOS, MMP OS), macOS
Mining Software	All major mining software (lolMiner, T-Rex, NBMiner, BzMiner, etc.)
IN THE BOX
Included	1 × PCIe 1x adapter card, 1 × PCIe 16x powered riser board, 1 × 60cm USB 3.0 cable, 1 × 6-pin PCIe to 15-pin SATA power adapter cable
