Which mining algorithms suit the ASRock RX 6500 XT 4GB in Australia and what are its limitations?

The RX 6500 XT 4GB is constrained by its limited VRAM on certain algorithms. It cannot mine Ethash ETC as the DAG size has grown beyond 4GB. Its strongest current algorithm targets are KawPow for Ravencoin at around 14 MH/s, ZelHash for Flux, and other algorithms with sub-4GB dataset requirements. For Australian miners the small memory and PCIe x4 host interface make this a budget entry-level option best suited for Ravencoin or Flux rather than ETC or Ergo. Always verify the current DAG size for any target coin before deploying 4GB GPU cards.

Is the ASRock RX 6500 XT 4GB profitable on Australian electricity rates in 2026?

The RX 6500 XT draws approximately 65-80 watts under mining load making it one of the lowest-power discrete GPUs available. This low wattage is its primary advantage in Australia high-electricity-cost environment as the daily running cost is only a few cents at typical tariffs. However its hashrate on viable 2026 algorithms is modest and profitability is coin-price dependent. For Australian miners already owning this card and evaluating whether to continue running it the near-zero electricity cost makes it worth keeping active on the right algorithm. As a new purchase the returns are marginal.

What OC settings should I use on the ASRock RX 6500 XT Phantom Gaming for mining?

The RX 6500 XT responds primarily to power limit reduction and core clock tuning as memory bandwidth is already limited. Target a power limit of 45-55 watts with a core clock of around 2400-2500 MHz. Memory clock can be modestly increased but the benefit on current algorithms is limited by the 64-bit memory bus. HiveOS handles the RX 6500 XT well using standard AMD compute driver settings. The Phantom Gaming D OC cooler manages the thermal load efficiently at reduced power limits keeping the card cool and quiet.

Does the PCIe x4 interface on the RX 6500 XT affect mining performance?

The RX 6500 XT uses a PCIe 4.0 x4 physical slot connection which provides less bandwidth than the PCIe x16 connections used by higher-end cards. For most GPU mining workloads bandwidth between the GPU and CPU is not the bottleneck so the x4 interface has minimal impact on mining hashrate. Running the card on a PCIe x1 riser on a mining motherboard further reduces bandwidth but this also does not materially affect performance on memory-bound mining algorithms like KawPow and ZelHash.

Does MinerHub provide warranty and Australian shipping for the ASRock RX 6500 XT?

Yes. MinerHub ships the ASRock Radeon RX 6500 XT Phantom Gaming D OC 4GB Australia-wide from Perth WA with same-day dispatch on orders placed before 2:00 PM AWST. ASRock manufacturer warranty and Australian Consumer Law protections apply. We can assist with driver setup, HiveOS configuration, and algorithm selection for 4GB VRAM cards. Contact hello@minerhub.com.au for any pre-sales or post-purchase support queries.

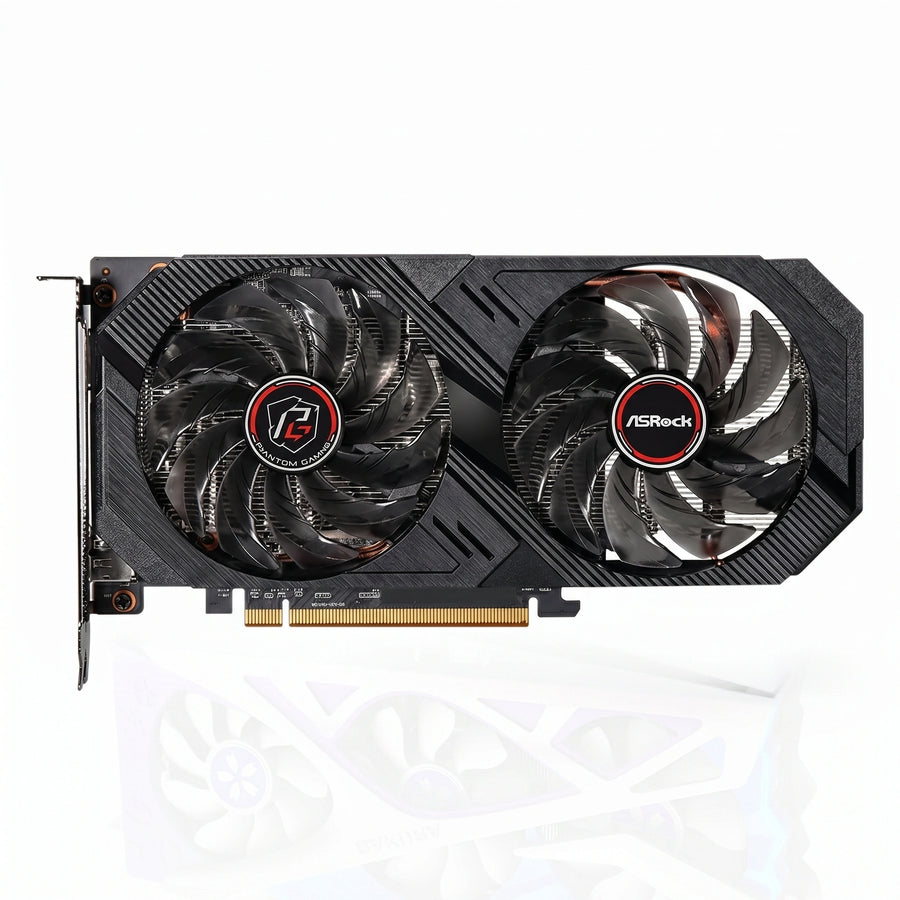

ASRock Radeon RX 6500 XT Phantom Gaming 4GB GDDR6 GPU for mining and gaming — RDNA 2 6nm dual-fan graphics card

ASRock Graphics Card

ASRock Radeon RX 6500 XT Phantom Gaming D OC 4GB GDDR6 — RDNA 2, 6nm

Name: ASRock Radeon RX 6500 XT Phantom Gaming D OC 4GB GDDR6 — RDNA 2, 6nm
Brand: ASRock
SKU: ASR-RX6500XT-PGD-OC
Price: 399.99 AUD
Availability: InStock
Rating: 4.76 (17 reviews)

4.8 17 reviews

$399.99

Incl. GST · Free AU shipping on orders over $50

In Stock

Qty

AU Warranty
Backed

Fast AU
Shipping

Secure
Checkout

Product Details

The ASRock Radeon RX 6500 XT Phantom Gaming D OC is an entry-level AMD RDNA 2 card built on the Navi 24 die with 1024 stream processors across 16 compute units, fabricated on TSMC's 6 nm process. The card carries 4 GB of GDDR6 across a narrow 64-bit bus and uses a 1 × 8-pin power input. ASRock's Phantom Gaming D OC variant ships with a modest factory overclock and a dual-fan cooler tuned for low noise. The 6 nm process gives Navi 24 genuinely strong perf-per-watt at the budget end of the stack.

For GPU mining the 6500 XT has significant limitations that must be understood before purchase. The 4 GB VRAM is below the current Etchash DAG, so Ethereum Classic mining is not viable on this card. The 64-bit memory bus also caps memory-bound algorithms harshly. The card is best suited to small-DAG, compute-bound algorithms — primarily Autolykos2 (Ergo) where you can expect ~28–30 MH/s at ~50 W with tuning. The PCIe 4.0 x4 lane configuration also bottlenecks the card noticeably when installed in a PCIe 3.0 motherboard, which is worth checking before deployment in older mining frames.

As a gaming card the 6500 XT is positioned for budget 1080p at medium settings in modern titles, or higher settings in esports and older games. AMD FSR is supported and helps stretch performance in supported titles. The Phantom Gaming D OC has a clean industrial aesthetic, low noise output, and runs cool under sustained load. Output is typically 1 × HDMI 2.1 and 1 × DisplayPort 1.4 — fewer ports than higher-tier cards, but enough for single or dual-monitor setups.

For Australian home miners and budget builders, the 6500 XT's ~107 W TDP and single 8-pin connector make it one of the lowest-power discrete GPUs currently available — attractive for low-electricity-budget Ergo mining rigs or as a video output card alongside ASIC mining operations. Any 450 W+ PSU will handle the card comfortably. The compact dual-slot form factor also suits small-form-factor builds and open-frame rigs where space is tight.

Specification	Value
GPU
GPU Model	AMD Radeon RX 6500 XT
GPU Chip	Navi 24
Architecture	RDNA 2
Process Node	TSMC 6 nm
Stream Processors	1024
Compute Units	16
Ray Accelerators	16
Infinity Cache	16 MB
Game / Boost Clock	~2610 MHz / ~2825 MHz (Phantom Gaming D OC; AIB-specific values)
MEMORY
Memory Capacity	4 GB GDDR6
Memory Bus	64-bit
Memory Speed	18 Gbps effective
Memory Bandwidth	144 GB/s (plus 16 MB Infinity Cache)
MINING (APPROX., TUNED)
Autolykos2 (ERG)	~28–30 MH/s @ ~50 W
Etchash (ETC)	Not viable — 4 GB VRAM below current DAG
KawPow (RVN)	Limited — VRAM and bus-width constrained
POWER
TDP	~107 W (Phantom Gaming D OC; reference is 107 W)
Power Connector	1 × 8-pin PCIe
Recommended PSU	450 W+ ATX
DISPLAY OUTPUTS
HDMI	1 × HDMI 2.1
DisplayPort	1 × DisplayPort 1.4
Max Digital Resolution	7680 × 4320 (8K) via DisplayPort
INTERFACE & COOLING
Bus Interface	PCIe 4.0 x4 (note: x4 only; bandwidth-limited on PCIe 3.0 systems)
Cooler	Dual axial fan, aluminium heatsink (Phantom Gaming D)
Slot Width	2-slot
PHYSICAL
Form Factor	ATX, compact dual-slot
Approx. Dimensions	~205 × 125 × 41 mm
Approx. Weight	~450 g
FEATURES & SOFTWARE
Upscaling	AMD FSR (FidelityFX Super Resolution)
APIs	DirectX 12 Ultimate, Vulkan, OpenGL 4.6, OpenCL 2.2
Driver	AMD Adrenalin (Windows), amdgpu (Linux)
IN THE BOX
Included	ASRock Radeon RX 6500 XT Phantom Gaming D OC 4GB graphics card

Australian Consumer Law Notice: All products sold by MinerHub come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have goods repaired or replaced if they fail to be of acceptable quality. Manufacturer warranty terms apply in addition to your statutory rights. All mining hashrate, power, and gaming performance figures are approximate values dependent on driver version, BIOS, tuning, ambient temperature, and host system. MinerHub does not guarantee mining returns or profitability.
