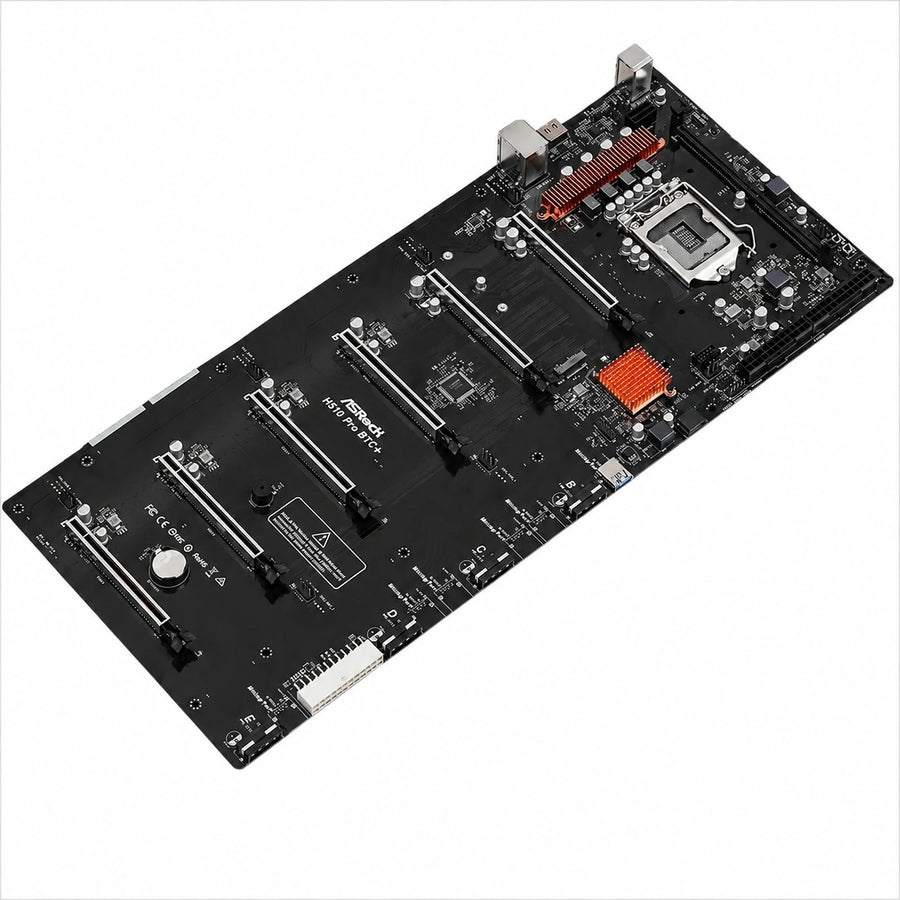

ASRock H510 PRO BTC+ Mining Motherboard LGA1200 Intel H510 DDR4

Name: ASRock H510 PRO BTC+ Mining Motherboard LGA1200 Intel H510 DDR4
Brand: ASRock
SKU: ASR-H510-PROBTC
Price: 159.99 AUD
Availability: InStock

$159.99

Incl. GST · Free AU shipping on orders over $299

In Stock · Ships within 1–2 business days

Qty

🛡️ AU Warranty
Backed

🚚 Fast AU
Shipping

🔒 Secure
Checkout

Product Details

6+1

GPU Capacity

PCIe 3.0

Bus Interface

DDR4

3200MHz Max

32GB

Max RAM

50A

Power Chokes

The ASRock H510 Pro BTC+ is purpose-built for GPU mining rigs. Its extended form factor houses six reinforced PCIe 3.0 x16 slots plus a dedicated USB mining port, letting you run up to seven graphics cards from a single board — without riser kits. Dual 24-pin ATX power connectors and an independent power rail ensure stable delivery under sustained mining loads, while Smart PCIe State Detection shows GPU status directly on the POST screen for quick fault diagnosis.

CPU Compatibility

Intel 10th Gen Core (LGA1200) Intel 11th Gen Core (LGA1200) Intel Pentium / Celeron (LGA1200) Intel Turbo Boost Max 3.0 ECC UDIMM (non-ECC mode)

Key Features

6x PCIe 3.0 x16 Slots — PCIE1 at full x16; PCIE2–6 at x1. Steel-reinforced for heavy GPU support and signal integrity.

USB PCIe x1 Mining Port — Onboard M_Port1 adds a 7th GPU slot via USB-type x1 riser kit (do not plug USB peripherals).

Riser-Free Design — Wide slot spacing allows direct GPU installation for maximum stability with no riser cables required.

Smart PCIe State Detection — POST screen displays live GPU install status across all slots for fast troubleshooting.

Dual 24-Pin ATX Power — Two extra 24-pin connectors plus a fully independent power rail maintain voltage stability under full rig load.

ASRock Super Alloy — Premium 50A power chokes, sapphire black PCB, and high-density glass fabric PCB for humidity resistance.

Intel Gigabit LAN — Stable wired connectivity for uninterrupted pool communication and remote rig management.

Onboard Power & Reset Buttons — Essential for open-frame rigs — no chassis power switch needed.

M.2 SATA Slot — Supports 2260/2280/22110 SATA3 SSDs up to 6Gb/s for lean OS installs.

AMI UEFI BIOS — 128Mb flash with multilingual GUI; supports XMP 2.0 memory profiles.

Full Specifications
Specification	Detail
CPU Socket	LGA1200 — Intel 10th & 11th Gen Core, Pentium, Celeron
Chipset	Intel H510
Form Factor	Non-standard extended (50.1 × 22.4 cm / 20.1 × 8.8 in)
Memory	1× DDR4 DIMM · DDR4-3200/2933/2800/2666/2400/2133 · Max 32GB · ECC UDIMM (non-ECC mode) · XMP 2.0
Expansion Slots	6× PCIe 3.0 x16 (PCIE1 @x16; PCIE2–6 @x1) + 1× USB Mining Port (M_Port1 @x1)
Storage	1× SATA3 6Gb/s · 1× M.2 (SATA3, 2260/2280/22110)
USB (Rear)	2× USB 3.2 Gen1 Type-A · 2× USB 2.0 Type-A
USB (Internal)	2× USB 2.0 headers (4 ports)
LAN	Intel Gigabit LAN (with ESD protection)
Video Output	1× HDMI (CPU integrated graphics)
Audio	Realtek HD Audio codec · 1× Line-in, 1× Line-out, 1× Mic-in
Power Connectors	1× 24-pin ATX (main) + 2× additional 24-pin ATX + 1× 8-pin CPU EPS12V · Fully independent power rail
Power Phases	4-phase Digi Power Design · 50A Premium Power Chokes
Fan Headers	8× system fan headers
BIOS	128Mb AMI UEFI · Multilingual GUI · Intel Turbo Boost Max 3.0 support
PCB	Sapphire Black PCB · High-Density Glass Fabric
Protection	ASRock Full Spike Protection (USB, Audio, LAN) · ASRock Steel Slots
Software	ASRock Live Update & APP Shop · Drivers CD
In the Box	Motherboard · Quick Installation Guide · Support CD · 1× SATA data cable · 1× M.2 screw
Dimensions	501 × 224 mm (19.7 × 8.8 in)
